How to Clean Main Brush [G8000 Max]

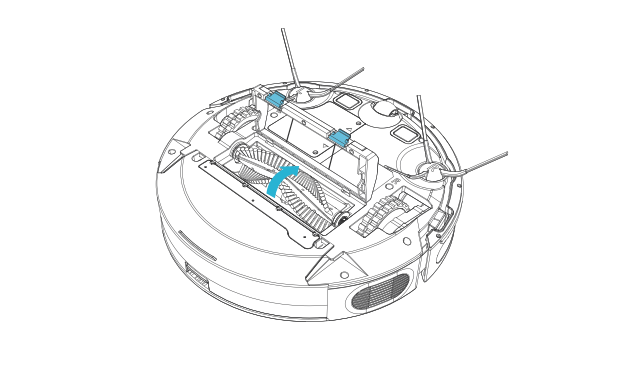

1. Press the release switch on the brushguard to open it.

4. Use sci4. Use scissors to cut away any hair tangled around the Main Brush.ssors to cut away any hair tangled around the Main Brush.

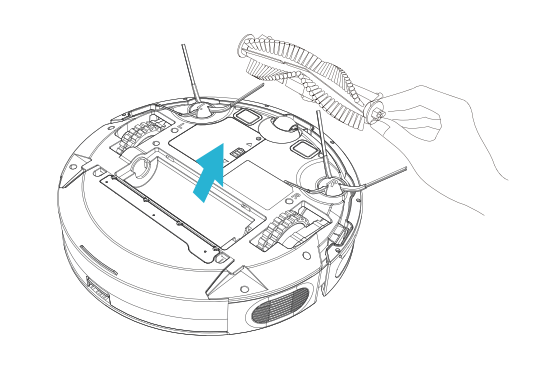

2. Take off main brush.

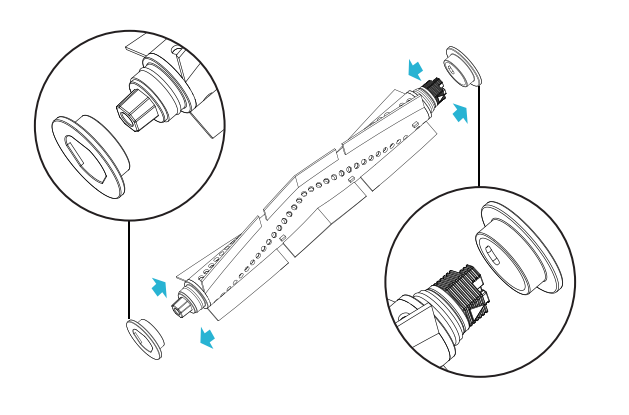

3. Open the two caps on the sides of the main brush, remove and clean any hair or dirt present on both sides. Reinstall the two caps on the main brush.
Please pay attention to thedirection of cap installation.

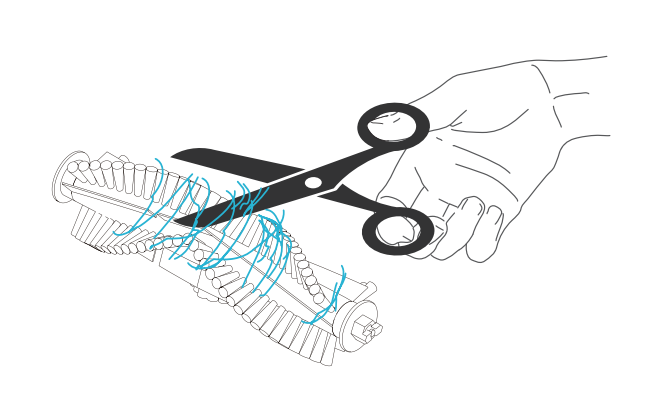

4. Use scissors to cut away any hair tangled around the Main Brush.

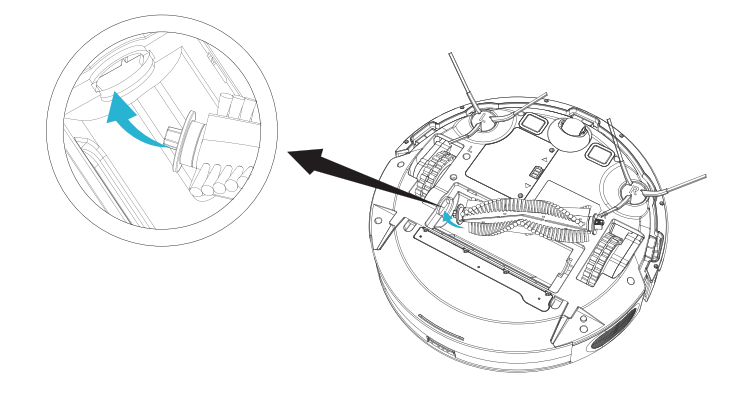

5. Install the Main Brush into the robot, ensuring to pay attention to the direction. Insert the fixed protruding end first,then click it into place.

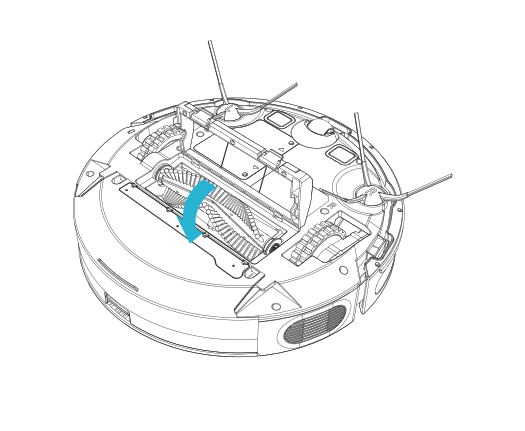

6. Press down to securely install the brush guard into place.

Model: G8000 Max
